Authorized Grademaster Dealer
These units are special order scrapers. We carry a full line of replacement parts!

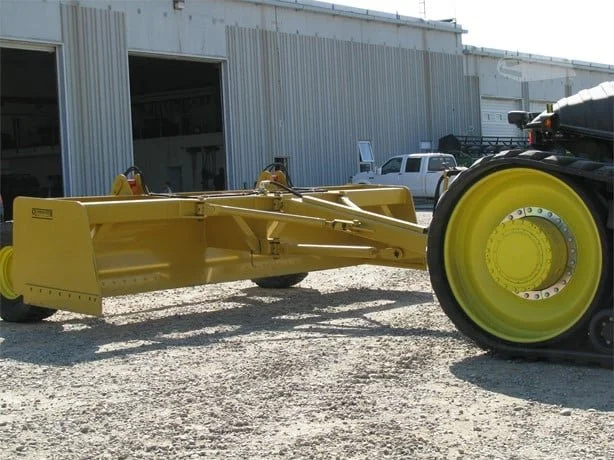

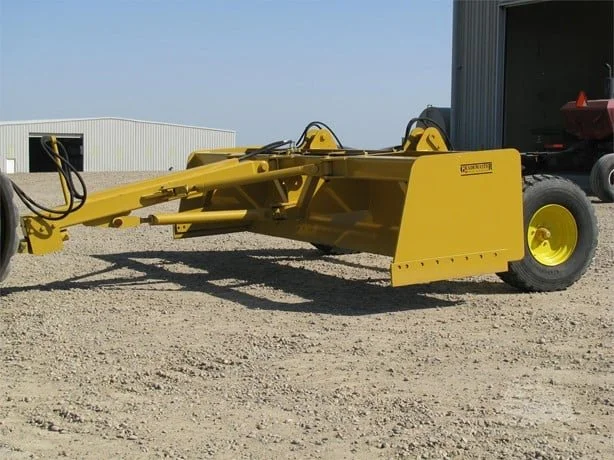

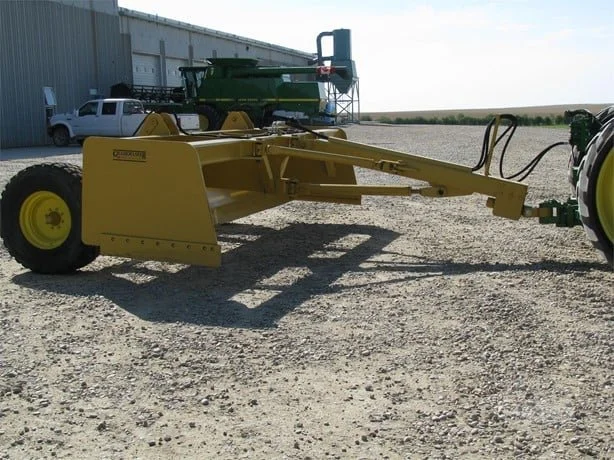

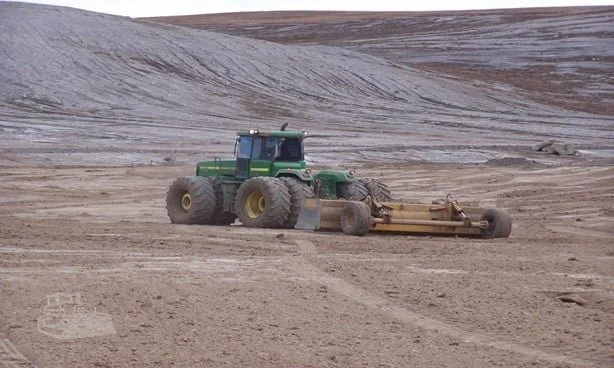

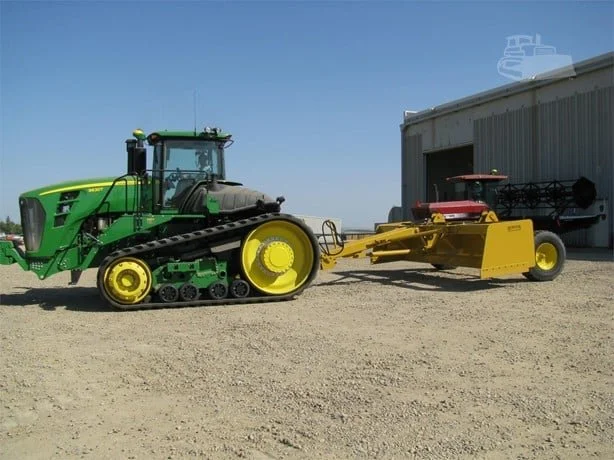

GRADEMASTER Bee Gee Blades / Drag Scrapers / Box Scrapers are designed to do an assortment of large-scale leveling jobs, from maintaining haul roads to leveling large tracts of land. THIS TOOL CAN DO IT ALL!

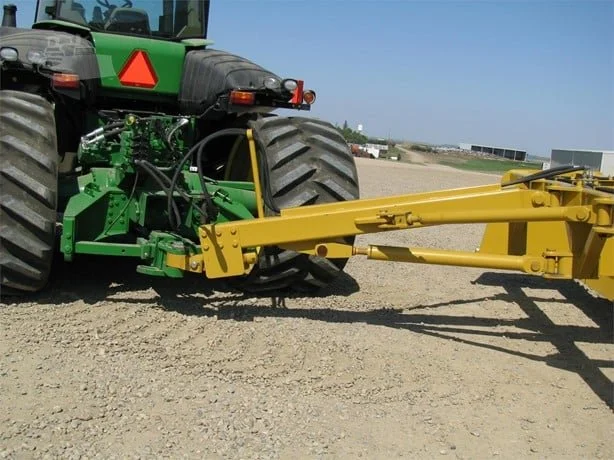

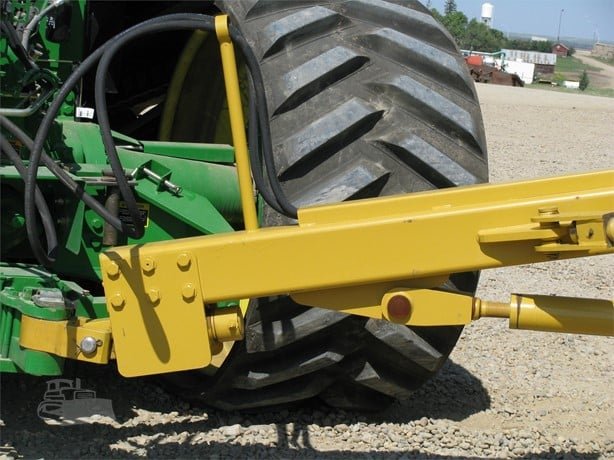

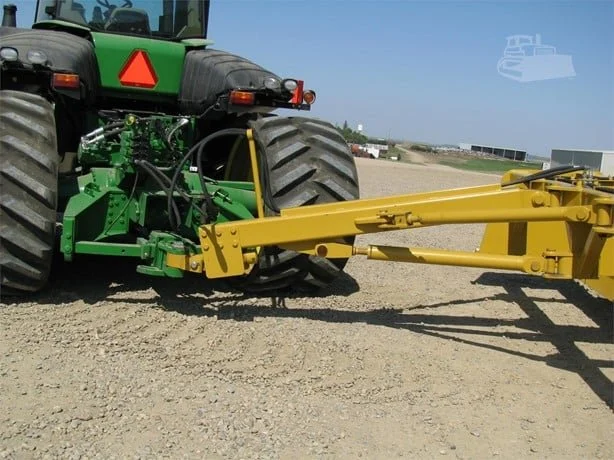

Heavy duty reversible hitch lets you adjust your Drag Scraper to the correct height of your tractor.
The hitch is easily reversed just by unbolting the from the draw bar. (This coincides with the lower adjustable torsion bar).

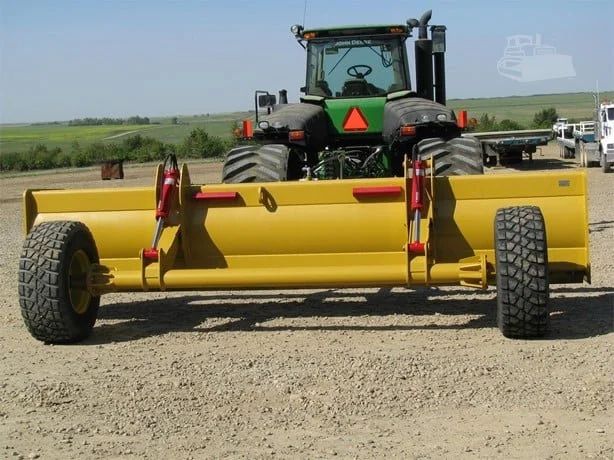

Heavy duty twin hyd. rams for smooth precise raising and lowering.
Additional cross supports on the inside walls and draw bar.
Specifications
18' 16'
Capacity - CU YD 9.3 8.2
Cutting Edge Width 18' 16'
Blade Size (3) 3/4" X 8" X 6' (2) 3/4" X 8" X 8'
Bowl Height 42" 42"
Bowl Length 50" 50"
Cut Depth (Adjustable) 8" 8"
Clearance Upper Blade 16" 16"
Tire Size 445 / 65R 22.5 445 / 65R 22.5
Hydraulic Cylinders 2 2
Overall Length Approx. 18' 18'
Weight/LBS Aprrox. 9,000 8,000
Draw Bar 8" X 8" X 1/2" X 10' 8" X 8" X 1/2" X 10'
Tongue Size 10" Long 4" Thick w/ 2" Hole 10" Long 4" Thick w/ 2" Hole
